Casement

CONSTRUCTION
Enduring character of a solid wood primed exterior (natural optional) coupled with the warmth and beauty of natural pine on the interior (prime, paint or stain optional), water-repellent and preservative-treated. Alternative interior and exterior wood species available. Basic jamb width 4-9/16 in. Brickmould and sill nosing are pre-applied to eliminate the need for nailing fin and reduce installation time.

PERFORMANCE GLAZING
Available in all Hurd ComfortGlaze options except Hurd FeelSafe. (See FeelSafe Casement.)

WEATHERPROOFING
Perimeter weatherstrip on top of sash and frame. Positive locking mechanism draws sash tight against weatherstrip.

OPERATION
Sleek, new Encore folding handle with geared operator for smooth operation. Dual arm operator opens a full 90 degrees for ease of cleaning. Contemporary DLX single lever sash lock. Concealed sliding nylon shoe hinges applied directly to sash for clean exterior. Adjustable stainless steel hinge track for maximum support.

OPTIONS
Screens: Aluminum frame with charcoal color fiberglass cloth is standard, aluminum mesh optional. Screen frame options include goldtone, white, bronze, champagne, oil-rubbed bronze, brushed chrome, bright brass, coppertone or antique brass.

Other options: Standard extension jambs available up to 7-3/8". Exterior casing available in flat casing, brickmould or basic unit. Non-standard sizing to 1/16" available (contact your Hurd distributor for size limitations).

Casement Configurations

Awning

CONSTRUCTION
Enduring character of a solid wood primed exterior (natural optional) coupled with the warmth and beauty of natural pine on the interior (prime, paint or stain optional), water-repellent and preservative-treated. Alternative interior and exterior wood species available. Basic jamb width 4-9/16". Brickmould and sill nosing are pre-applied to eliminate the need for nailing fin and reduce installation time.

PERFORMANCE GLAZING
Available in all Hurd ComfortGlaze options except Hurd FeelSafe. (See FeelSafe Awning.)

WEATHERPROOFING
Perimeter weatherstrip on top of sash and frame.

OPERATION
Sleek, new Encore folding handle with geared dual arm operator for smooth operation. Concealed sliding nylon shoe hinges applied directly to sash for clean exterior. Stainless steel hinge track located for maximum support. Guide bar operable system. Sash locks are standard.

OPTIONS
Screens: Aluminum frame with charcoal color fiberglass cloth is standard, aluminum mesh optional. Screen frame options include goldtone, white, bronze, champagne, oil-rubbed bronze, brushed chrome, bright brass, coppertone or antique brass.

Other options: Standard extension jambs available up to 7-3/8". Exterior casing available in flat casing, brickmould or basic unit. Non-standard sizing to 1/16" available (contact your Hurd distributor for size limitations).

Double Hung

CONSTRUCTION
Enduring character of a solid wood primed exterior (natural optional) coupled with the warmth and beauty of natural pine on the interior (prime, paint or stain optional), water-repellent and preservative-treated. Alternative interior and exterior wood species available. Basic jamb width 4-9/16". Brickmould and sill nosing are pre-applied to eliminate the need for nailing fin and reduce installation time.

PERFORMANCE GLAZING
Available in all Hurd ComfortGlaze options except Hurd FeelSafe. (See FeelSafe Awning.)

WEATHERPROOFING
Perimeter weatherstrip on top of sash and frame.

OPERATION
Sleek, new Encore folding handle with geared dual arm operator for smooth operation. Concealed sliding nylon shoe hinges applied directly to sash for clean exterior. Stainless steel hinge track located for maximum support. Guide bar operable system. Sash locks are standard.

OPTIONS
Screens: Aluminum frame with charcoal color fiberglass cloth is standard, aluminum mesh optional. Screen frame options include goldtone, white, bronze, champagne, oil-rubbed bronze, brushed chrome, bright brass, coppertone or antique brass.

Other options: Standard extension jambs available up to 7-3/8". Exterior casing available in flat casing, brickmould or basic unit. Non-standard sizing to 1/16" available (contact your Hurd distributor for size limitations).

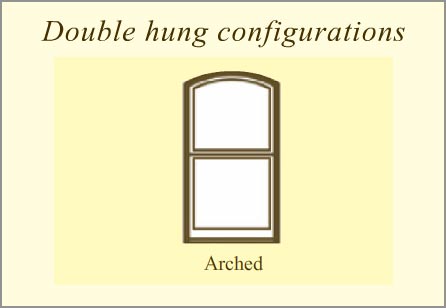

Double Hung Configurations

Geometric Shapes

CONSTRUCTION
The timeless elegance of natural pine (standard) on the interior, water repellent and preservative-treated. Alternative interior wood species available, including cedar, maple, red oak, birch, douglas fir, white oak, beech, cherry, lyptus, mahogany and walnut. Basic jamb width is 4-9/16". For shapes over sliding patio doors, the basic jamb width is 5".

DIRECT SET
Glass set directly into frame.

SASH and FRAME
Fixed sash installed in a frame or jamb. Available in non-radius or radius shapes.

PERFORMANCE GLAZING
Available in double-glazed with Low-E, argon filled glass in a 9/16" or 3/8" air space sealed insulating unit, dependent on glass size. ClimaGuard SPF UV protection glass also available.

OPTIONS
Decorative glazing: Bronze, gray, obscure or stained glass. Grilles: Vintage Series (SDL) wood in tree different profiles and several different sizes. Aluminum finish internal SDL spacer bars are standard. White or black available. Option to mix Vintage SDL dimensions and profiles.

Factory Paint: Choose from over 180 factory-applied colors.

Also available: custom colors; two-tone; or split-finish.

Factory Stain: Choose from 10 factory-applied stains. Also available in two-tone and split-finish options.

Other options: Extension jambs available in unlimited custom depths, integrated with the product and in matching gactory finish if desired. Optional interior and exterior casings, backbands, subsills, pediments, pilasters, keystones, and crowns integrated with product.

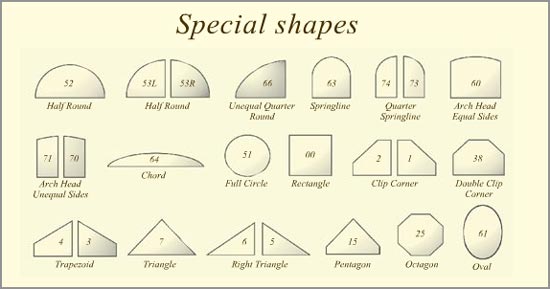

Special Shapes

Custom Shapes

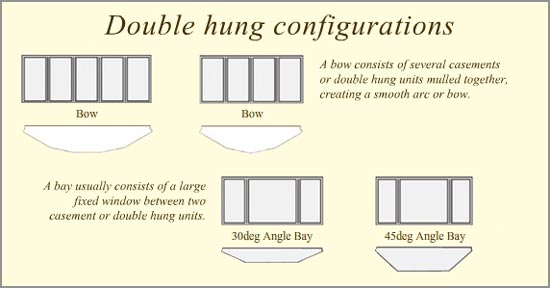

Bay or Bow

CONSTRUCTION
A bay usually consists of a large fixed window between two casement or double hung units. A bow consists of several casements or double hung units mulled together; creating a smooth arc or bow.

Bay or Bow Configurations
