Casement

CONSTRUCTION
Low-maintenance, durable, extruded aluminum clad exterior with the timeless elegance of natural pine (standard) on the interior (prime, paint or stain optional), water-repellent and preservative-treated. Alternative interior wood species available. Constructed of high-strength, shatter-resistant, laminated glass, Hurd FeelSafe windows are built to withstand the rigors of even hurricane conditions. Ideal for coastal applications or other locales with high winds and frequent storms. Basic jamb width 4-9/16".

PERFORMANCE GLAZING
Available with Hurd FeelSafe laminated insulated glass or laminated glass or Low-E.

WEATHERPROOFING
Perimeter weatherstrip on top of sash and frame. Positive locking mechanism draws sash tight against weatherstrip.

OPERATION
Corrosion-resistant gear operator and dual arms of 300 series stainless steel for the ultimate in coastal performance. Dual arm operator opens a full 90 degrees for ease of cleaning. Sleek, new Encore folding handle with geared operator for smooth operation. Contemporary DLX single lever sash lock. Concealed sliding nylon shoe hinges applied directly to sash for clean exterior. Adjustable stainless steel hinge track for maximum support.

OPTIONS
Screens:
Aluminum frame with charcoal color fiberglass cloth is standard, aluminum mesh optional. Screen frame options include goldtone, white, bronze, champagne, oil-rubbed bronze, brushed chrome, bright brass, coppertone or antique brass.

Other options:
Standard extension jambs available up to 7-3/8". Extruded aluminum drip cap. Aluminum clad brickmould applied. Non-standard sizing to 1/16" available (contact your Hurd distributor for size limitations).

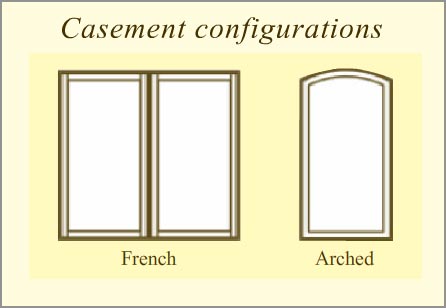

Casement Configurations

Awning

CONSTRUCTION
Low-maintenance, durable, extruded aluminum clad exterior with the timeless elegance of natural pine (standard) on the interior (prime, paint or stain optional), water-repellent and preservative-treated. Alternative interior wood species available. Basic jamb width 4-9/16".

PERFORMANCE GLAZING
Available in all Hurd ComfortGlaze options except Hurd FeelSafe. (See FeelSafe Awning.)

WEATHERPROOFING
Perimeter weatherstrip on sash and frame.

OPERATION
Sleek, new Encore folding handle with geared dual arm operator for smooth operation. Concealed sliding nylon shoe hinges applied directly to sash for clean exterior. Stainless steel hinge track located for maximum support. Guide bar operable system. Sash locks are standard.

OPTIONS
Screens:
Aluminum frame with charcoal color fiberglass cloth is standard, aluminum mesh optional. Screen frame options include goldtone, white, bronze, champagne, oil-rubbed bronze, brushed chrome, bright brass, coppertone or antique brass.

Other options:
Standard extension jambs available up to 7-3/8". Extruded aluminum drip cap. Applied aluminum clad brickmould or flat casing. Non-standard sizing to 1/16" available (contact your Hurd distributor for size limitations).

Single Hung

CONSTRUCTION
No unsightly jambliners. Low maintenance, durable, extruded aluminum clad exterior with the timeless elegance of an all-wood, natural pine (standard) interior (prime, paint or stain optional), water-repellent and preservative-treated. Alternative interior wood species available. Basic jamb width 4-9/16".

PERFORMANCE GLAZING
Available in all Hurd ComfortGlaze options, except Hurd FeelSafe. (See FeelSafe single hung.)

WEATHERPROOFING
Weatherstrip located on bottom rails, headjamb, top checkrail and top and bottom stiles.

OPERATION
Side load removable bottom sash for convenient cleaning. Concealed block and tackle balance system for a natural, all-wood interior with no jambliners. Two surface-mounted locks draw sash tight against weatherstrip.

OPTIONS
Screens:
Half screen. Aluminum frame is painted to match exterior cladding. Charcoal color fiberglass cloth standard, aluminum mesh optional. White sash lock available in double hung style lock.

Other options:
Standard extension jambs available up to 7-3/8". Extruded aluminum drip cap. Applied aluminum clad brickmould or flat casing. Non-standard sizing to 1/16" available (contact your Hurd distributor for size limitations).

Single Hung Configurations

Geometric Shapes

CONSTRUCTION
The timeless elegance of natural pine (standard) on the interior, water repellent and preservative-treated. Alternative interior wood species available, including cedar, maple, red oak, birch, douglas fir, white oak, beech, cherry, lyptus, mahogany and walnut. Basic jamb width is 4-9/16". For shapes over sliding patio doors, the basic jamb width is 5".

DIRECT SET
Glass set directly into frame.

SASH and FRAME
Fixed sash installed in a frame or jamb. Available in non-radius or radius shapes.

PERFORMANCE GLAZING
Available in double-glazed with Low-E, argon filled glass in a 9/16" or 3/8" air space sealed insulating unit, dependent on glass size. ClimaGuard SPF UV protection glass also available.

OPTIONS
Decorative glazing: Bronze, gray, obscure or stained glass. Grilles: Vintage Series (SDL) wood in tree different profiles and several different sizes. Aluminum finish internal SDL spacer bars are standard. White or black available. Option to mix Vintage SDL dimensions and profiles.

Factory Paint: Choose from over 180 factory-applied colors.

Also available: custom colors; two-tone; or split-finish.

Factory Stain: Choose from 10 factory-applied stains. Also available in two-tone and split-finish options.

Other options: Extension jambs available in unlimited custom depths, integrated with the product and in matching gactory finish if desired. Optional interior and exterior casings, backbands, subsills, pediments, pilasters, keystones, and crowns integrated with product.
